Monitor GDS Data
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect a GDS to DLC (Data Link Cable).
- Turn the ignition switch ON.

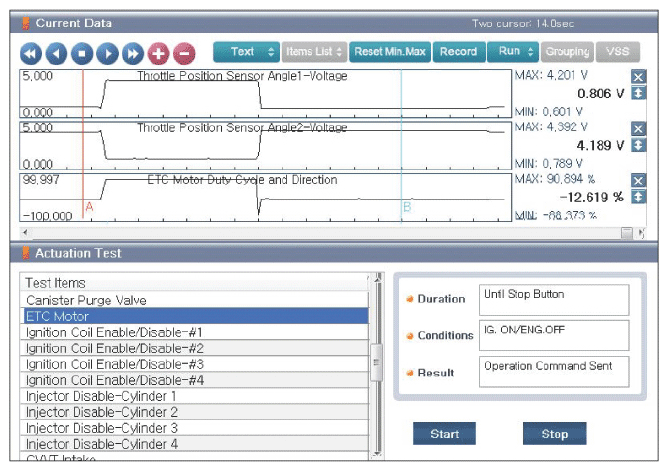

- Actuate the "ETC Motor" using the GDS.
(During actuation, monitor the voltage of TPS (Throttle Position Sensor) 1 and 2 and the ETC motor duty on "Current Data".)
- Does the actuation work properly? Is the sensor output normal?
YES
- Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR .
NO
- Go to next step below.
