Signal Waveform & Data

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
G12600379Courtesy of HYUNDAI MOTOR AMERICA

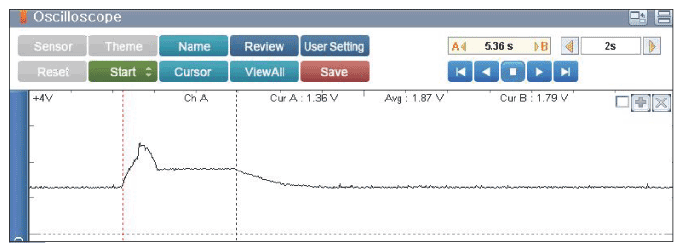

(Fig.1) Normal waveform of FPS at acceleration
