Monitor GDS Data

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect a GDS to DLC (Data Link Cable).
  2. Turn the ignition switch ON.

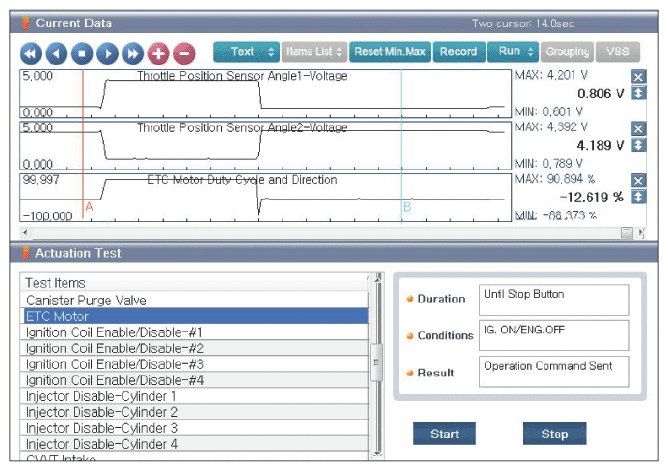

  3. Actuate the "ETC Motor" using the GDS.

    (During actuation, monitor the voltage of TPS (Throttle Position Sensor) 1 and 2 and the ETC motor duty on "Current Data").

  4. Does the actuation work properly? Is the sensor output normal?
    G12600366Courtesy of HYUNDAI MOTOR AMERICA
  5. Are the parameters displayed correctly?

    YES

    • Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR ".

    NO

    • Go to next step below.
