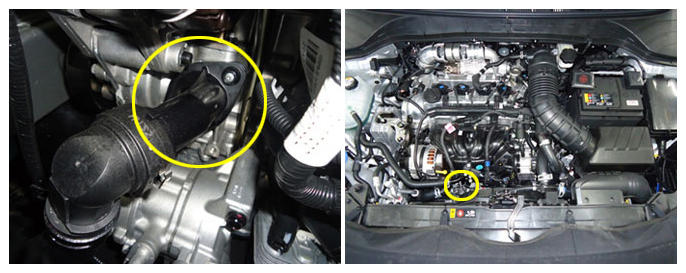

Component Location: Thermostat
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
Thermostat
Thermostat, installed between engine and radiator, is automatically opened or closed in order to control the amount of flowing water so that ECM maintains engine coolant temperature at certain level. If, generally, engine coolant temperature reaches about 80°C (176 °F), wax in the thermostat is expended in order to open the valve. And, reversely, if coolant temperature is low, wax in the thermostat is contracted that makes valve is closed. Thermostat maintains engine temperature in order to active best engine performance and prevent overheat and overcooling.
