Fuel Rail Pressure Sensor

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

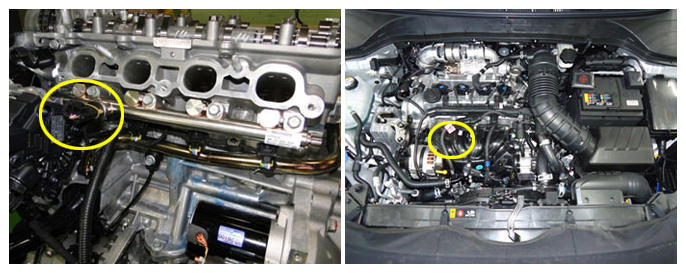

G12600328Courtesy of HYUNDAI MOTOR AMERICA

Fuel rail pressure sensor is mounted to fuel rail and it senses fuel rail pressure.

GDI ECM operates fuel pressure control valve with the signal from fuel rail pressure sensor to control optimized RPM and rail pressure.
