Component Location: Injector

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

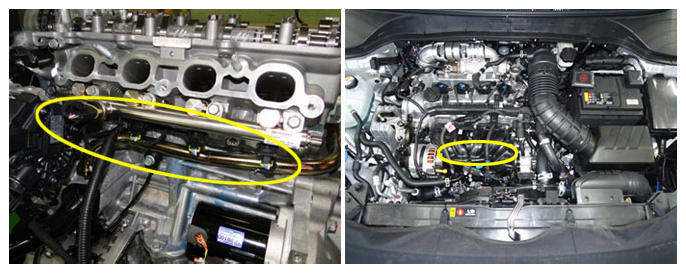

Injector

G12600334Courtesy of HYUNDAI MOTOR AMERICA

Injectors jet out high pressure fuel calculated by ECM to each cylinders. Direct and separated injections improve fuel efficiency and engine power.
