Monitor GDS Data
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect GDS to Data Link Connector (DLC).
- Engine "ON".
- Driving vehicle.

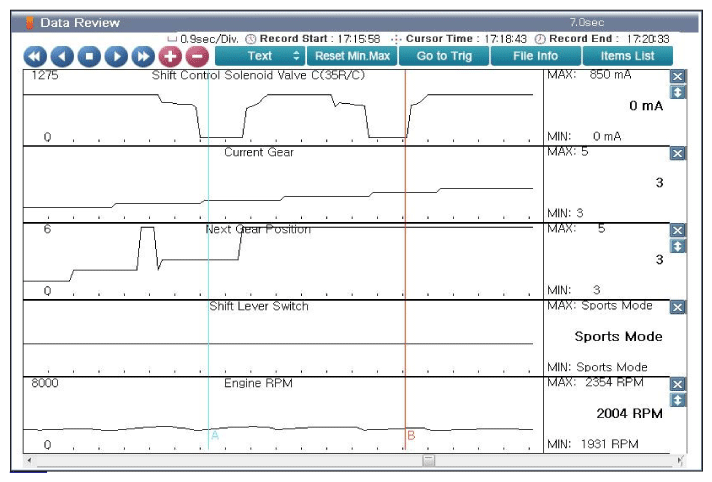

- Select "Current Data" mode and monitor "Shift Control Solenoid Valve C (35R/C)" parameter.
Specification: Increasing Gradually
- Is parameter displayed within specification?
YES
- Fault is intermittent caused by poor contact between PCM/TCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next procedure.
