Output Speed Sensor Waveform Inspection
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Normal Value | Prerequisite Condition | Probe (+) | Probe (-) |
|---|---|---|---|---|

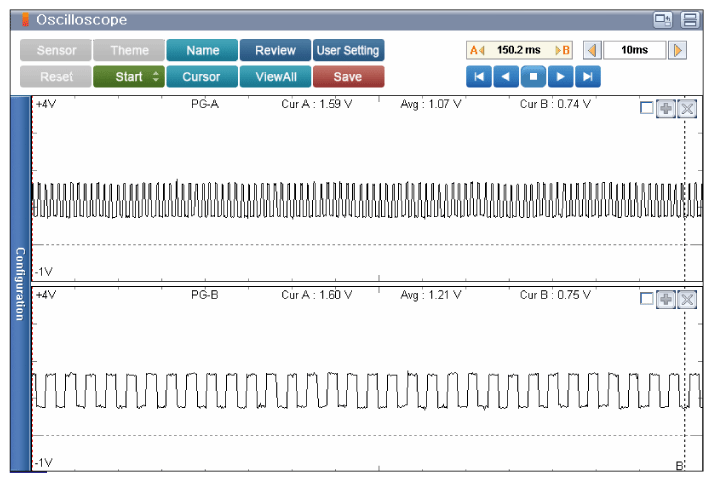

| Signal circuit (Open/Short): oscilloscope | Image below |
|
Output speed sensor signal terminal | Chassis ground |
- Is the measured value within specification?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Replace the OUTPUT SPEED SENSOR with an usable one and check for proper operation. If it works properly, put the component in place. Then, go to "VERIFICATION OF VEHICLE REPAIR ".
