Monitor GDS Data

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".

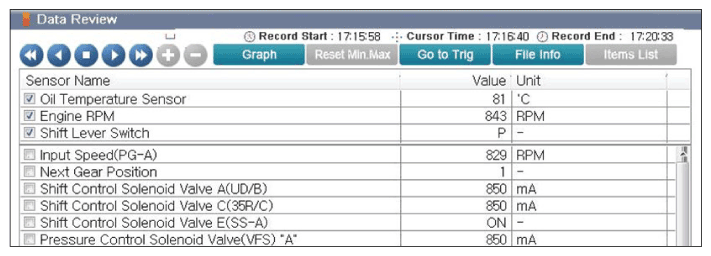

  3. Select "Current Data" mode and monitor "Oil Temperature Sensor" parameter.

    Specification:  Increasing Gradually

    G12592633Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the Oil temperature sensor within specification?

    YES

    • Fault is intermittent caused by poor contact of PCM/TCM and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Go to next procedure.
