Check The Shift Lever

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move shift lever "N" to "D" range.
  2. Check the Shift lever is stop between "N" range and "D" range.
  3. If the Shift lever is stop between "N" range and "D" range, replace Shift lever.
  4. After complete above procedure, Move shift lever "P" to "D" range 2times.

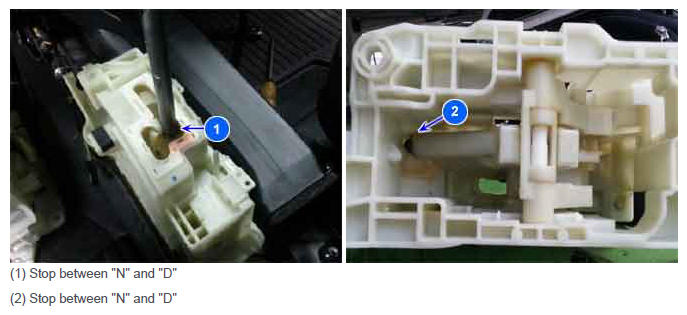

    G12592630Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the problem solved?

    YES

    NO

    • Go to next procedure.
