Check The Alignment Of Shift Cable
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Move TGS lever to "N" position.
- Set Manual Control Lever in "N" position.
- How to check whether the "N" position matches or not

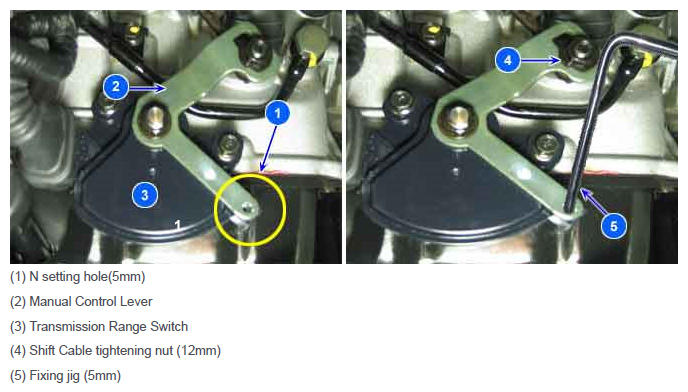

- Insert "N setting Jig (5)" into the "N setting hole"
There should be no loading such as pulling, slipping or suspension between the shift cable and the Manual Control Lever.
- Insert "N setting Jig (5)" into the "N setting hole"
- If it is impossible to insert a zig or lever pulling, slipping or suspension occurs, loosen the nut while inserting the zig to solve the impossibility to insert the zig, lever pulling, slipping or suspension and then tighten the nut.
- Remove the Jig from "N setting hole"
- After finishing the task, shift the gear from "P" to "D" twice.

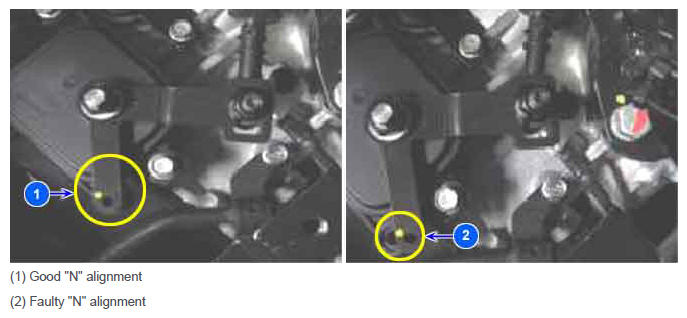

"N" setting error confirmation method
- Is the problem solved?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next procedure.
