Monitor GDS Data

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".

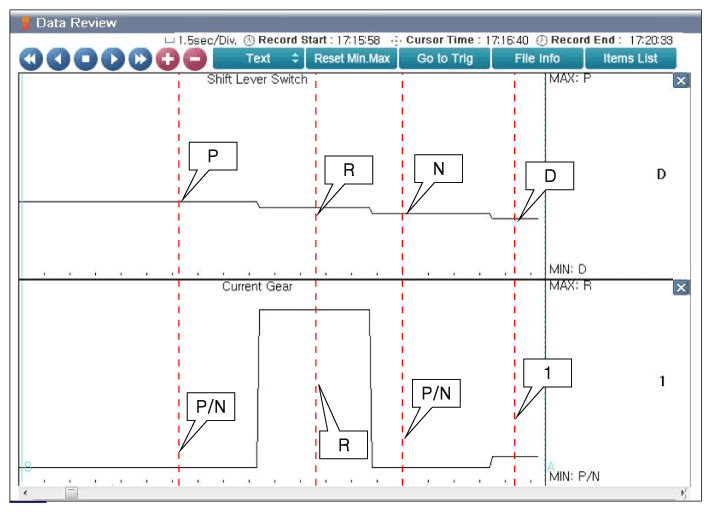

  3. Select "Current Data" mode and monitor "Shift Lever Switch" and "Current Gear" parameter.
  4. Change a shift lever from P-range to D-range.
    G12592627Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the Inhibitor switch value changed in specification?

    YES

    • P0705-00 can be happened When Shift Cable alignment is not correct between TGS Lever and Transmission Range Sensor. So Do Not replace "Inhibitor Switch" and Check the Alignment of Shift Cable.

    NO

    • Go to next procedure.
