Inhibitor Switch
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
The indoor operation position of shift lever is delivered to the transmission according to the driver's request, and the lever position at the time of P-Range, R-Range, N-Range and D-Range is delivered to PCM/TCM to control the engagement of gear.

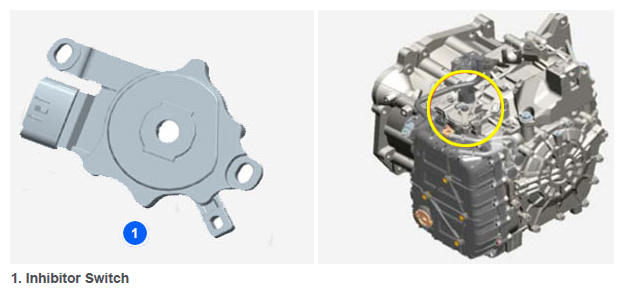

- The inhibitor switch is installed on top of the transmission and it is connected to the shift lever.
- The inhibitor switch generates a signal with 4 contact points and outputs S1(P), S2(R), S3(N) and S4(D).
- S1(P), S2(R), S3(N) and S4(D) signals of the inhibitor switch are delivered to PCM/TCM according to the operation of shift lever to control the shift range.
