Actuation Test

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector (DLC).
  2. Turn "ON" the Ignition Switch.
  3. Select the "Actuation Test" mode on the GDS.
  4. Inspect operating status of all valves with Actuation Test.

    Specification:  It's normal if operating sound is heard.

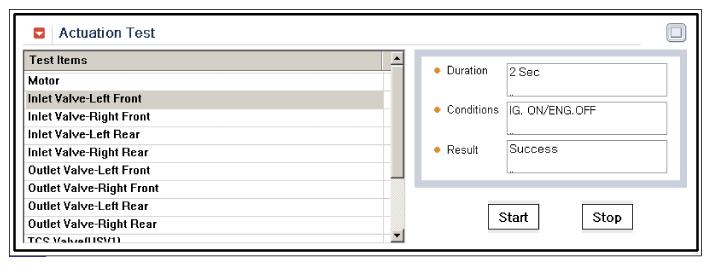

    G12596202Courtesy of HYUNDAI MOTOR AMERICA

    (Fig.1) Test Condition: Ignition "ON".

  5. Does a Front left valve (in) operate normally?

    YES

    • Fault can be intermittent, caused by poor connection and/or ESP (ESC)'s connector. Or, ESP (ESC) memory was not cleared after repair. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
