GDS Data Analysis

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect GDS to Data Link Connector (DLC).
  2. Turn the Engine "ON".

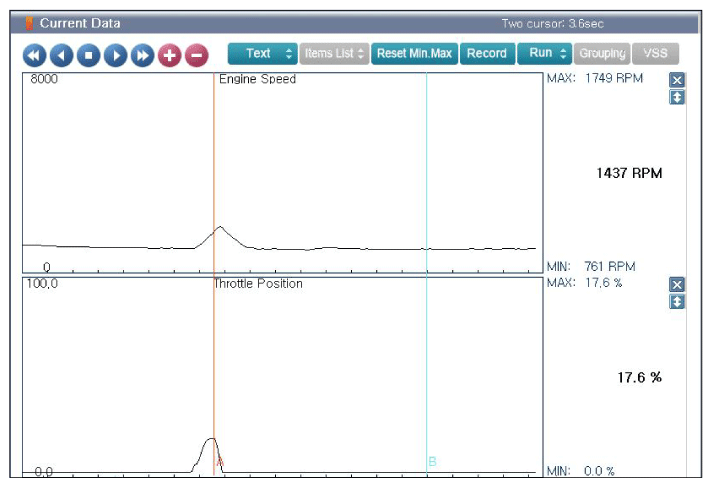

  3. Monitor the "Engine Speed", "Throttle Position" parameter on the "Current Data" menu of the GDS.
    G12596190Courtesy of HYUNDAI MOTOR AMERICA
  4. Whenever you change the shift lever position, is the parameter changed?

    YES

    • Fault is intermittent caused by poor connection. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Go to next step.
