Fig 1: Normal Waveform Of Wheel Speed Sensor At Driving
Courtesy of HYUNDAI MOTOR AMERICA

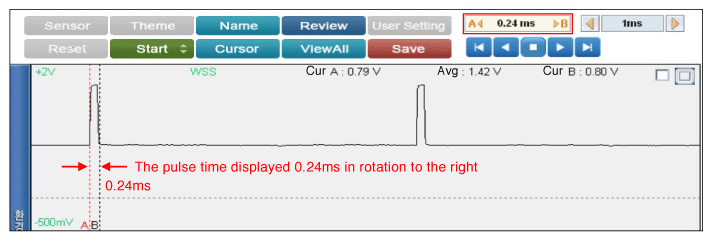

Fig 2: Normal Waveform Of Smart Type Wheel Speed Sensor At Stall
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA

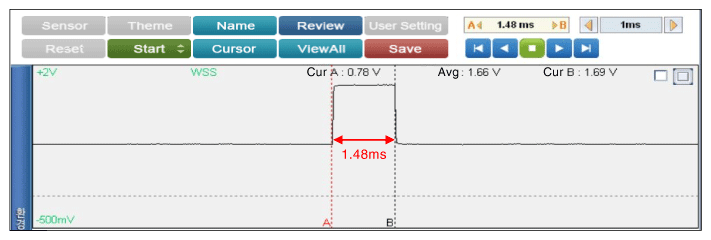

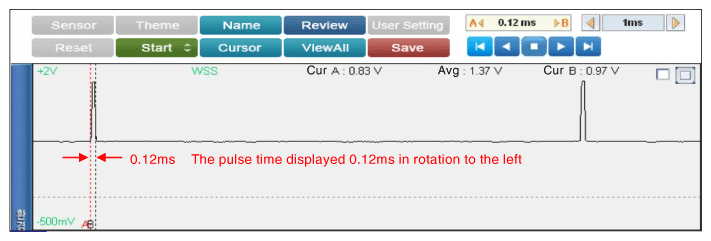

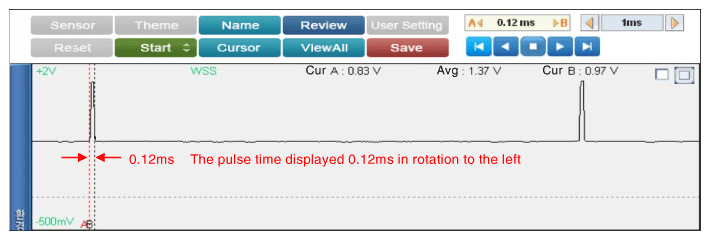

Figures above: Normal waveform of smart type Wheel Speed Sensor with wheel rotating.
Fig 3: Normal Waveform At Power Terminal Of The Wheel Speed Sensor With Connector Disconnected
Courtesy of HYUNDAI MOTOR AMERICA
* Smart type Wheel Speed Sensor is installed at rear axle of the SPAS applied vehicle.
