Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal.

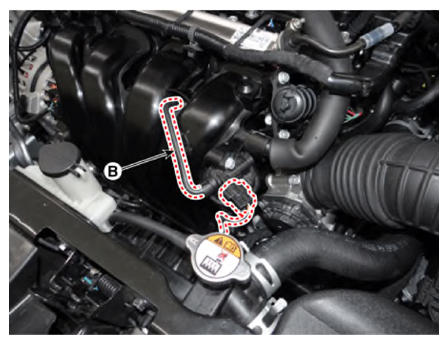

Disconnect the variable intake solenoid valve connector (A) and vacuum hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

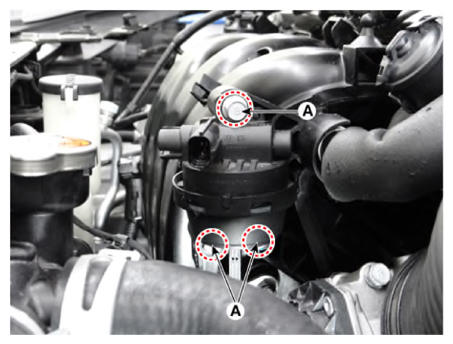

Remove the VIS valve after loosening the mounting bolts (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

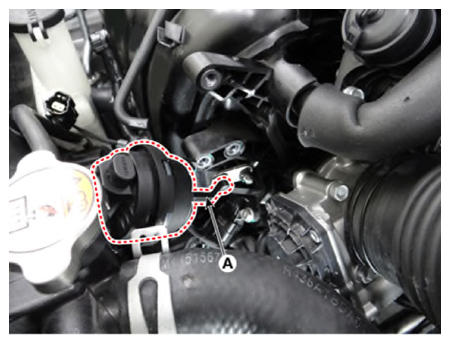

Remove the VIS valve (A) after loosening the rod.

Courtesy of KIA MOTORS AMERICA, INC.
