Description & Operation: Description
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

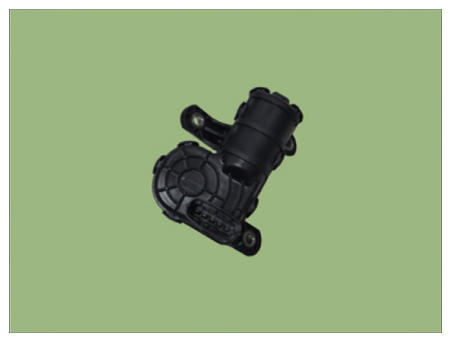

- The Variable Charge Motion Actuator (VCMA) is installed on the inlet of the intake manifold.
- It consists of a DC motor which actuates the VCM valve and a position sensor which detects the position of the VCM valve.
- The VCM system tumbles air flow entering into combustion chamber of each cylinder by closing the VCM valve in the cold start conditions.
- This tumble effect reduces cold start emissions by improving atomization
