Front Heated Oxygen Sensor
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.

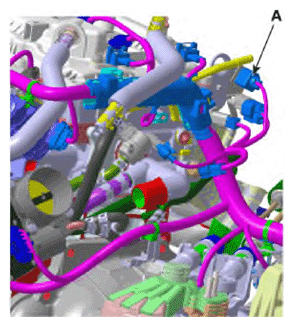

- Disconnect the connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

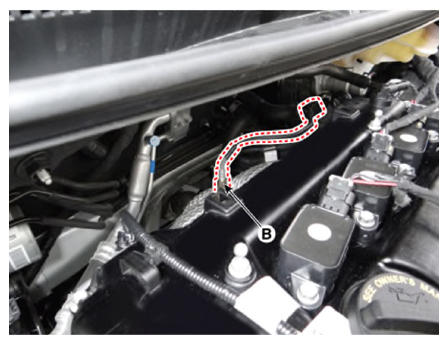

- Remove the heated oxygen sensor (B) by using the SST (09392-1Y100)
Tightening torque
:
39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
