Repair Procedures: Inspection: Exhaust
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.

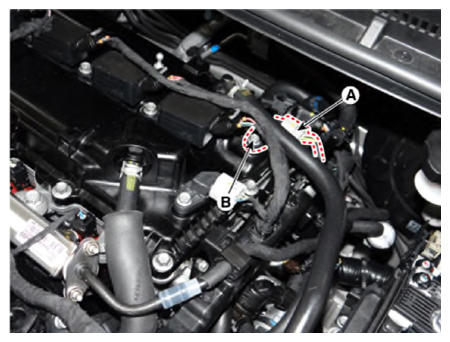

- Disconnect the camshaft position sensor connector (A).
- Remove the camshaft position sensor after loosening the mounting bolt (B).
Tightening torque
:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
