Monitor DTC Status

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Plug GDS to Data Link Connector (DLC).
Turn "ON" the ignition switch.

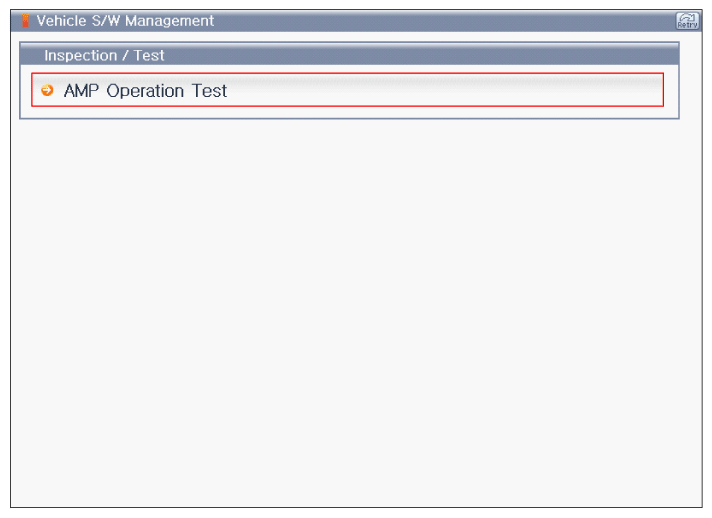

Select "AMP" system and perform "Vehicle S/W Management" with GDS.

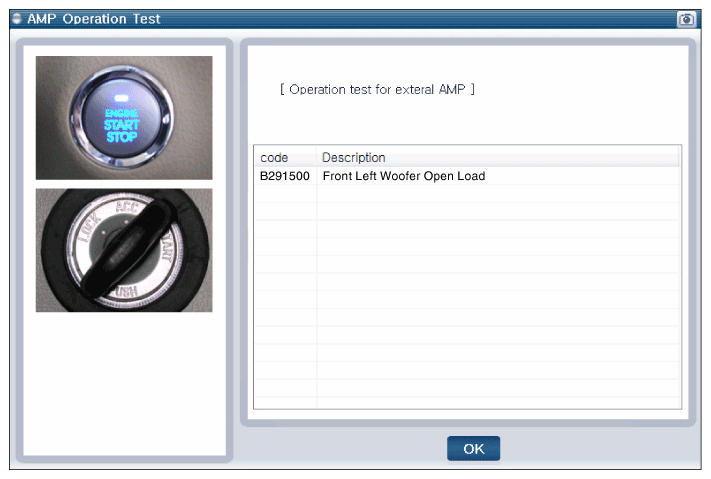

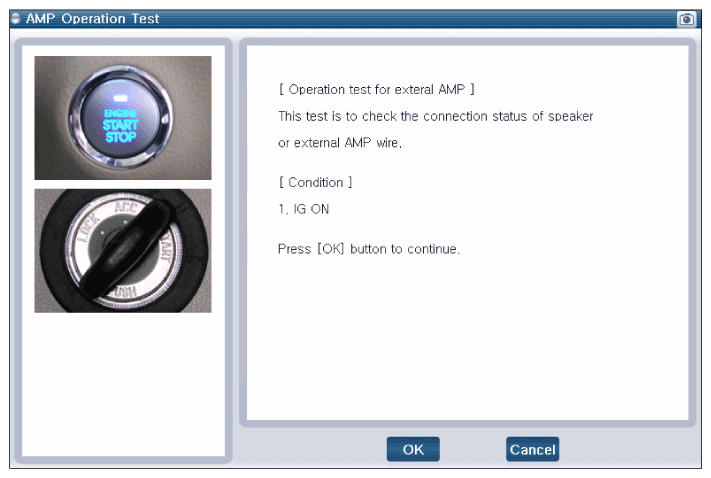

Perform "AMP Operation Test" of "Vehicle S/W Management".

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Is the DTC set as above?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- This can be an intermittent fault caused by poor contact in the sensor's and/or control module's connector. Or, control module's memory was not cleared after repair. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage.
- Repair or replace the relevant component(s) as necessary, and go to "VERIFICATION OF VEHICLE REPAIR ".
