Monitor Current Data
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect GDS to Data Link Connector (DLC).
- Turn the ignition switch ON and warm up the vehicle up to an operational temperature.

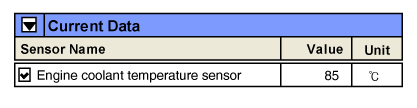

- Select "Engine Coolant temperature sensor" parameter on the "Current Data" of the GDS.
- Check whether the value of the sensor changes according to the engine temperature change.
- Is the parameter within the specification?
YES
- Go to next procedure.
NO
- Inspect the circuit and components connected to the Coolant Temperature Sensor and then repair or replace relevant component (s) as necessary. Then go to "VERIFICATION OF VEHICLE REPAIR ".
