Intake Actuator

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

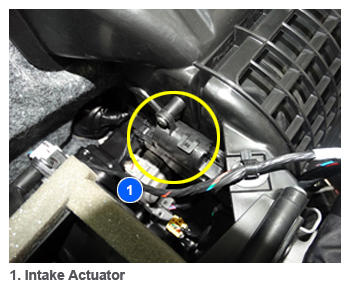

G12595856Courtesy of HYUNDAI MOTOR AMERICA

The Intake Door Actuator is linked to the Blower Unit (Module) and consists of a actuator motor, and a potentiometer that provides feedback. The actuator controls the inlet door by detecting and manipulating the door position when signals come from the controller.
