Evaporator Sensor

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

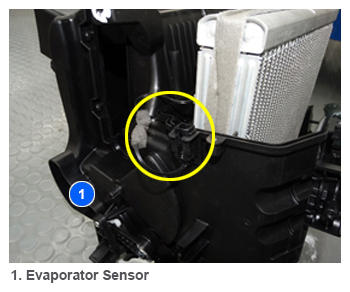

G12595859Courtesy of HYUNDAI MOTOR AMERICA

The Evaporator Sensor is linked to a heater unit and measures the temperature of the heater core to prevent any damage to the component caused by over-cooling. The sensor contains a thermistor that transmits the variable resistance value to the A/C module according to the temperature. Then the A/C module cuts off power supply to the compressor relay when the value from the sensor is below a specified level.
