Run-Out Inspection
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Jack up the vehicle.

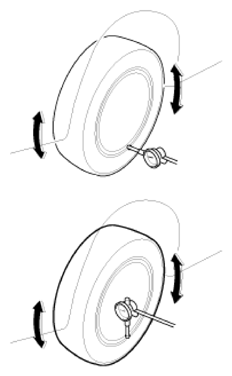

- Measure the wheel Run-Out by using a dial indicator as image below.
| Run-out |
Aluminum |
Steel |
| Radial mm (in.) |
Below 0.3 (0.012) |
Below 1.1 (0.043) |
| Axial mm (in.) |
Below 0.3 (0.012) |
Below 0.7 (0.027) |
- If measured value exceeds the standard value, replace the wheel.
 Courtesy of HYUNDAI MOTOR AMERICA
|
