Diagnosis With GDS
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- BCW system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self diagnosis.
- Connect the cable of GDS to the data link connector in driver side crash pad lower panel, and turn on the GDS.
- Select the vehicle model and then BCW system.

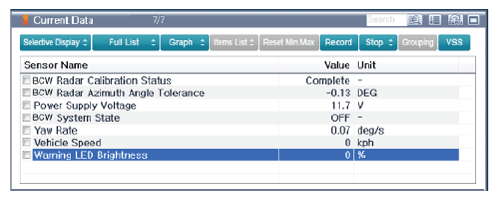

- Select "Input/output monitoring", if you want to check current data of BCW system.

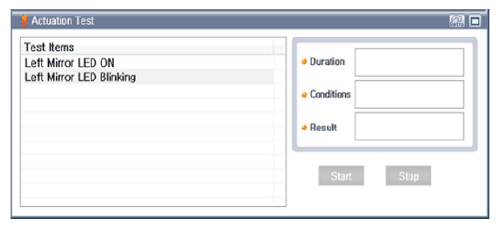

- If you want to check each module operation forcefully, select "Actuation test".
- Ignition "OFF", connect GDS.

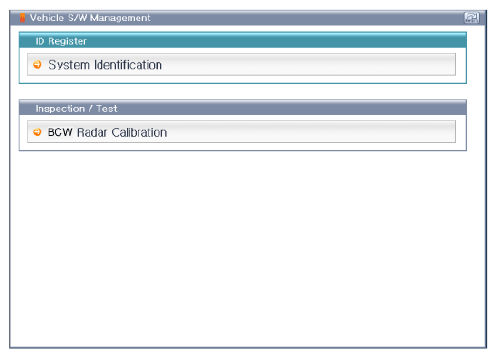

- Ignition "ON" & Engine "OFF", select BCW system and "BCW Radar Calibration" mode.

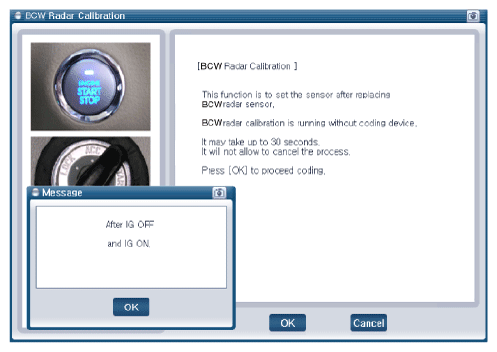

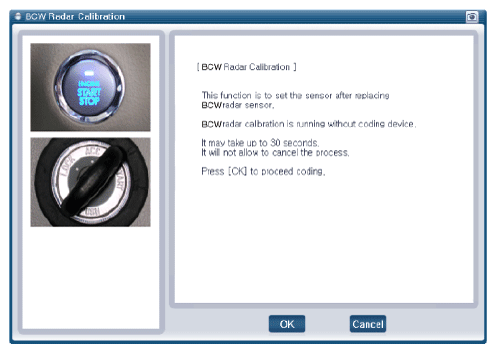

- The GDS will show the BCW Reset function steps.

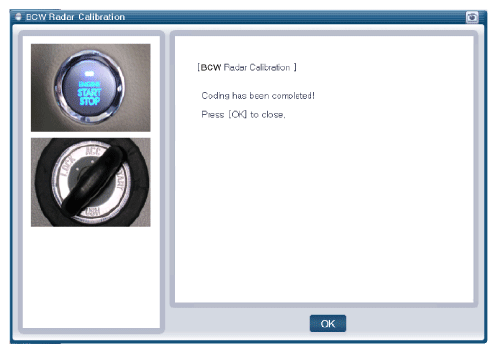

- The BCW initialization procedure will be performed.
