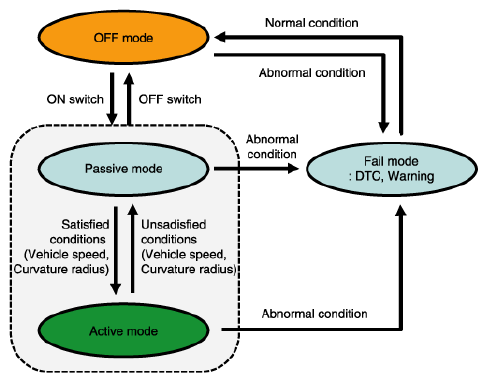

System Operating Mode
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- When starting the engine with the switch off, OFF mode is on.
- When pressing ON switch in OFF mode, Passive mode is on.
- If starting the engine with the switch ON, Passive mode is on.
When IGN is ON, the switch is in the initial state: The last position is kept.
- If IGN OFF → ON with the switch ON, the switch is ON.
- If IGN OFF → ON with the switch OFF, the switch is OFF.
- If you start the engine with BCW switch ON, or if you turn on the BCW with IGN OFF, the warning lamp of the door mirror keeps blinking for 2 to 3 seconds.
This is to inform the driver that the BCW system is ready. (provided that if the system is in Fail mode, there is no blinking.)
- If the activation conditions (speed and curvature radius) are met while driving, Active mode is on (warning issued).
- If the activation conditions (speed and curvature radius) are not met while driving, Passive mode is on (warning removed).
- If BCW & LCA operation fails in any mode, Fail mode is on.
- If BCW & LCA operation operates normally in Fail mode, OFF mode is on.
- If pressing OFF switch while BCW & LCA function is operating (Active/Passive), OFF mode is on.
