Circuit Diagram

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

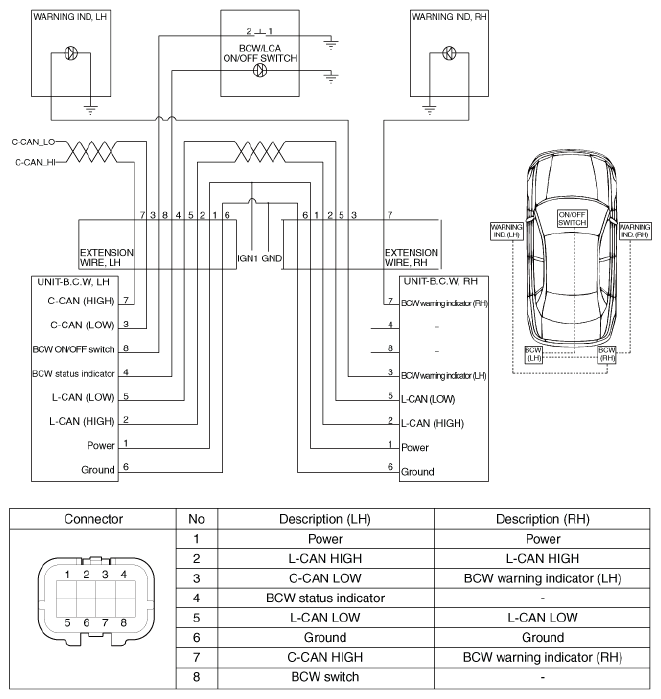

Fig 1: Blind-Spot Collision Warning Unit Connector End View And Terminal Description
G12607526Courtesy of HYUNDAI MOTOR AMERICA
