Repair Procedures: Inspection

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door quadrant inner cover (A).
    G12607554Courtesy of HYUNDAI MOTOR AMERICA

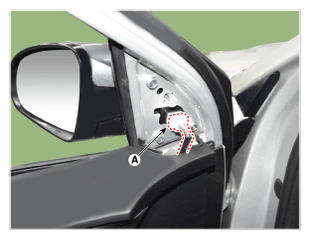

  3. Disconnect the power door mirror connector from the harness.
    G12607555Courtesy of HYUNDAI MOTOR AMERICA
  4. Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
    G12607556Courtesy of HYUNDAI MOTOR AMERICA
