Repair Procedures: Installation

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.

NOTE:

Before installing, check that the shift lever and manual control lever are placed in the "N" position.

CAUTION:

Before installing, check that the shift lever and manual control lever are placed in the "N" position.

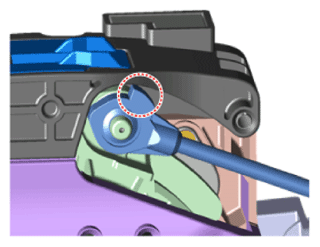

Insert the shift cable after checking the direction of projection to prevent wrong assembly.

Courtesy of HYUNDAI MOTOR AMERICA

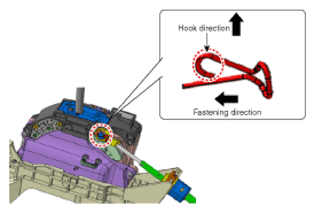

When assembling the snap pin, be careful about the correct direction.

Courtesy of HYUNDAI MOTOR AMERICA
