Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the shift lever in the "N" position
  2. Remove the air cleaner assembly and air duct

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery and tray.

    (Refer to Engine Electrical System - "BATTERY ")

  4. Remove the ECM.

    (Refer to Engine Control System - "ENGINE CONTROL MODULE (ECM) ")

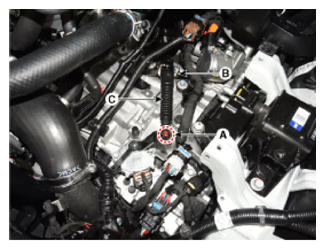

  5. Remove the shift cable (C) from the cable bracket (B), after loosening the shift cable nut (A).
    G12596944Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

  7. Remove the crash pad.

    (Refer to Body - "CRASH PAD ")

  8. Remove the heater and blower.

    (Refer to Heating, Ventilation and Air Conditioning - "HEATER ")

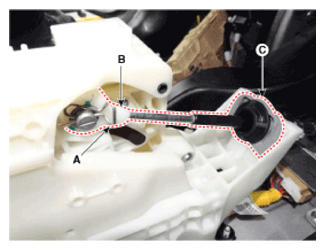

  9. Disconnect the shift cable.
    1. Disconnect the eye-end (B) after removing the snap pin (A).
    2. Release the lock and then remove the cable socket (C).
      G12596945Courtesy of HYUNDAI MOTOR AMERICA

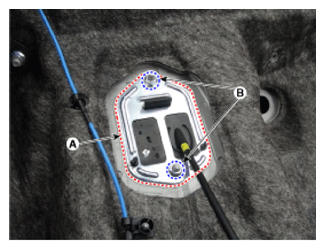

  10. Remove the retainer (A) by loosening the nuts (B-2ea).
    G12596946Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the shift cable from the vehicle.
