Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the cleaner assembly and air duct
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- Remove the ECM.
(Refer to Engine Control System - "ENGINE CONTROL MODULE (ECM) ")

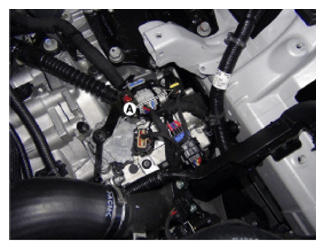

- Disconnect the Input shaft speed sensor connector (A).
- Remove the clutch actuator.
(Refer to Dual Clutch Transmission Control System - "CLUTCH ACTUATOR ASSEMBLY ").
- Remove the Input shaft speed sensor (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2kgf.m, 7.2 - 8.7 lb-ft)
