Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Make sure vehicle does not roll before setting shift lever to "N" position.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- Remove the ECM.
(Refer to Engine Control System - "ENGINE CONTROL MODULE (ECM) ")

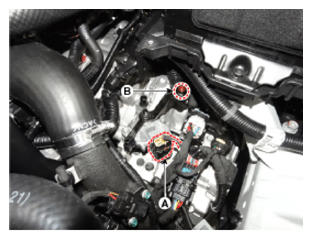

- Disconnect the inhibitor switch connector (A).
- Remove the shift cable mounting nut (B).

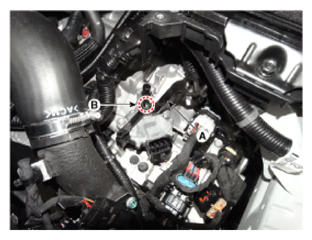

- Remove the manual control lever (A) after loosening nuts (B)

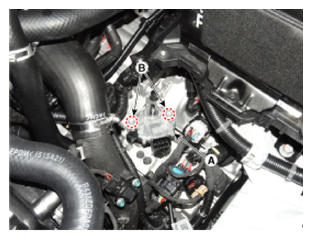

- Remove the inhibitor switch (A) after loosening bolts (B-2ea)
