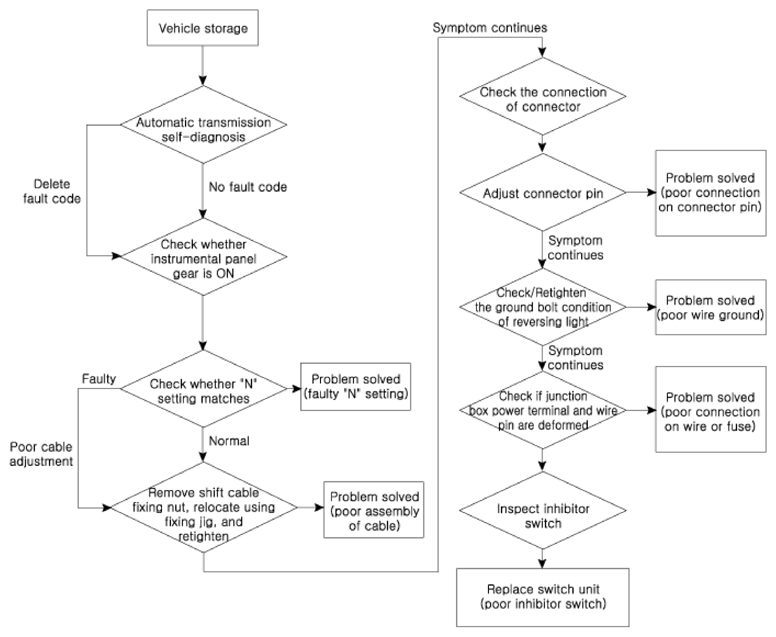

Inspection Flow

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
G12596925Courtesy of HYUNDAI MOTOR AMERICA
