Home >> Hyundai >> 2018 >> Kona Limited, FWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 122 (Dual Clutch Transmission Control System - 1.6L) >> Gear Actuator Assembly >> Schematic Diagrams >> Circuit Diagram

Circuit Diagram

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

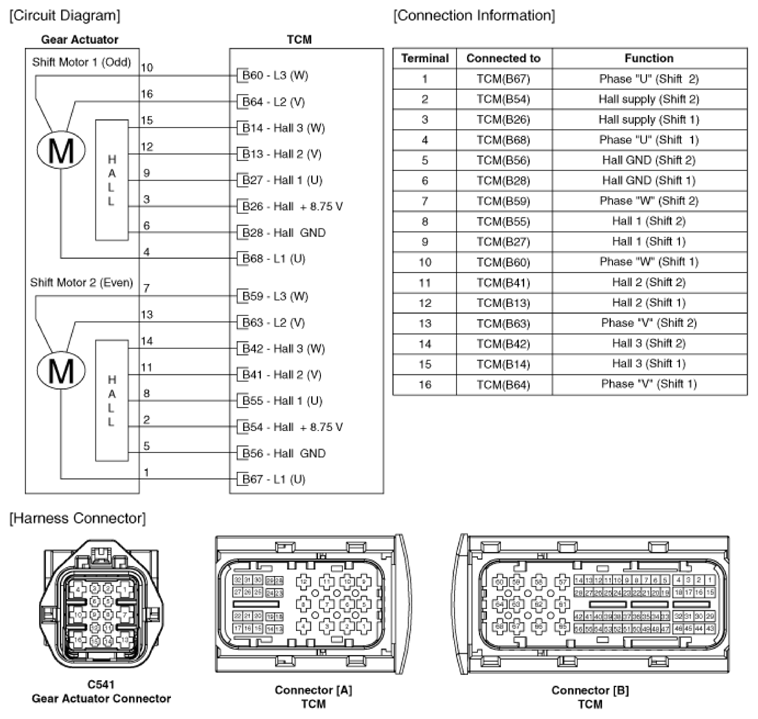

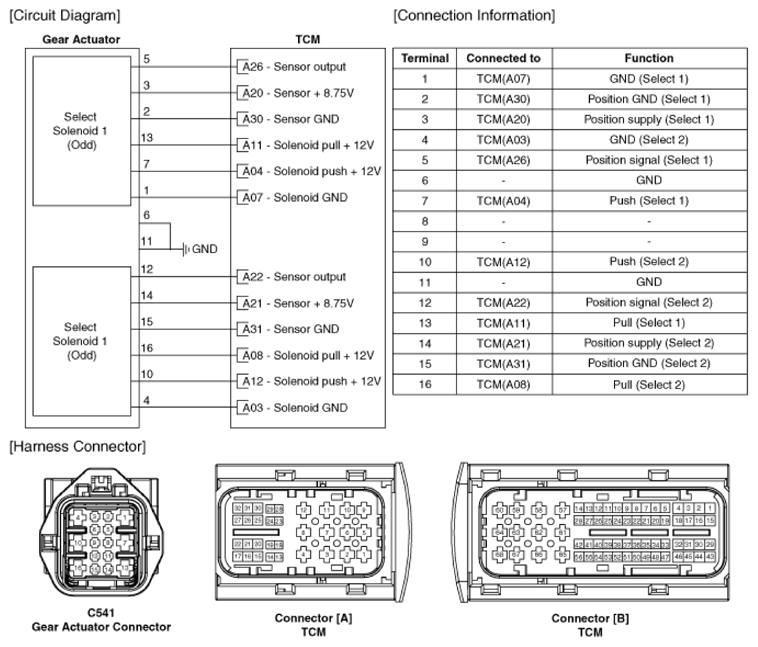

G12596899Courtesy of HYUNDAI MOTOR AMERICA
G12596900Courtesy of HYUNDAI MOTOR AMERICA
