Circuit Diagram

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

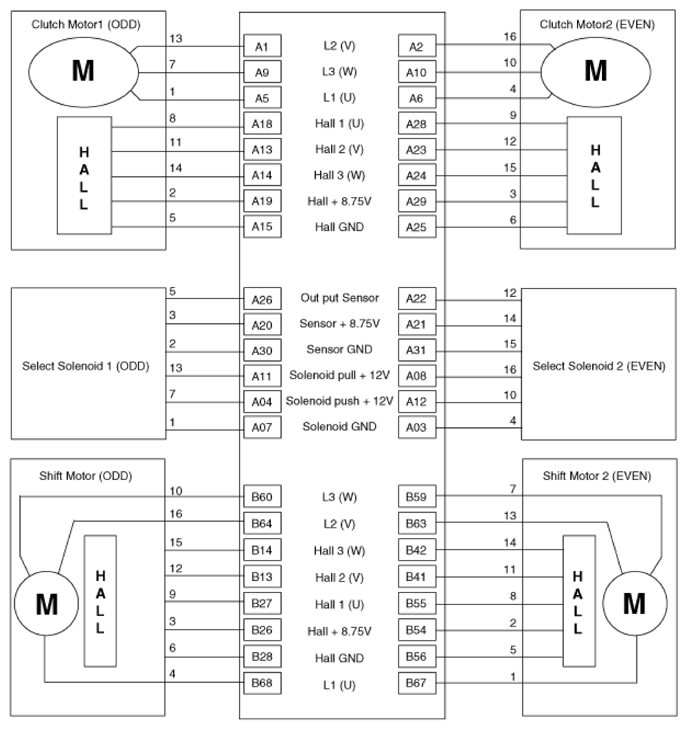

G12596860Courtesy of HYUNDAI MOTOR AMERICA

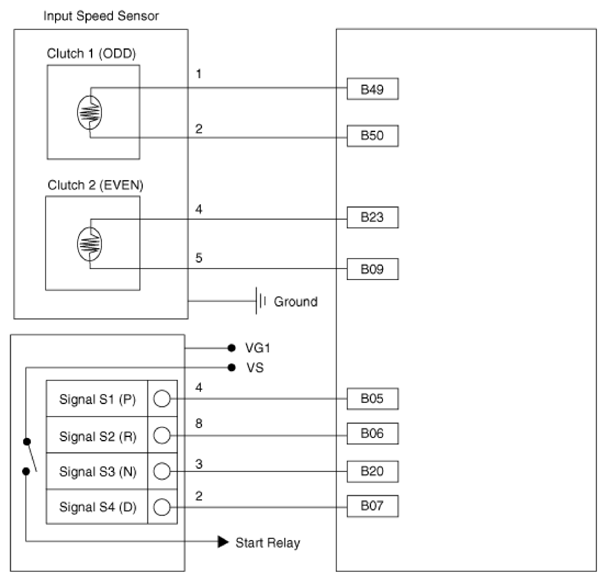

G12596861Courtesy of HYUNDAI MOTOR AMERICA
