Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.

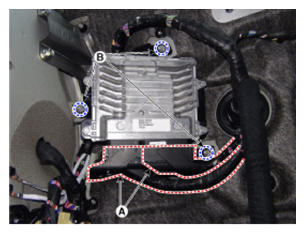

- Disconnect the TCM connector (A).
- Remove the TCM from the vehicle after removing the mounting nut (B-3ea).
Tightening Torque
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb.ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
