Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")

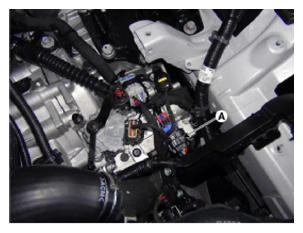

Disconnect the clutch actuator connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

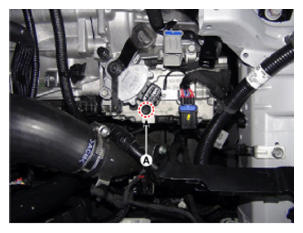

Remove the ground bolt (A).
Tightening Torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

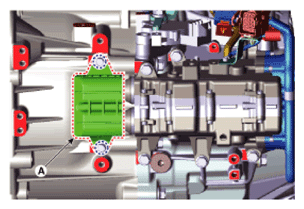

Remove the fork cover (A).
Tightening Torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the under cover.
(Refer Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the vacuum pump.
(Refer to Brake System - "VACUUM PUMP ")

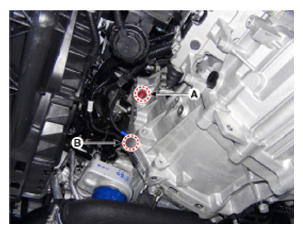

Remove the starter mounting bolt (A) and transmission lower mounting bolt (B).
Tightening Torque:

42.2 - 53.9 N.m (4.3 - 4.5 kgf.m, 31.1 - 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

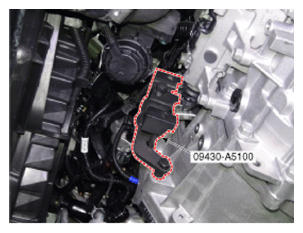

Fix the clutch engagement fork after installing special service tool (09430-A5100).

Courtesy of HYUNDAI MOTOR AMERICA

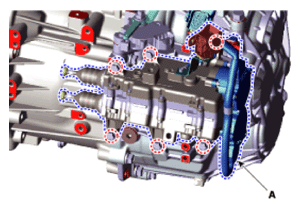

Remove the clutch actuator (A)
Tightening Torque:

19.6 - 26.5 N.m (2.0 - 2.7kgf.m, 14.5 - 19.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
If the motor replacement, and remove the clutch actuator motor (A).
Tightening Torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
If you have replaced the dual clutch assembly or clutch actuator, perform wear compensation on the clutch actuator.
(Refer to Clutch Actuator Assembly - "ADJUSTMENT ")
CAUTION:
- If you only replace a motor, you don"t need separate adjustment. If you replace a clutch actuator with a new one, make sure that you don"t perform initialization.
