Repair Procedures: Installation
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Perform wear compensation when you have replaced the motor as well as the dual clutch assembly or clutch actuator.
(Refer to Clutch Actuator Assembly - "REPAIR PROCEDURES ")
- If you only replaced the motor, install the clutch actuator motor.NOTE:
- Do not reuse a O-ring (A), and sealing bolt (B).
- Check the assembled state of the dowel pins (A) before installing the clutch actuator assembly.

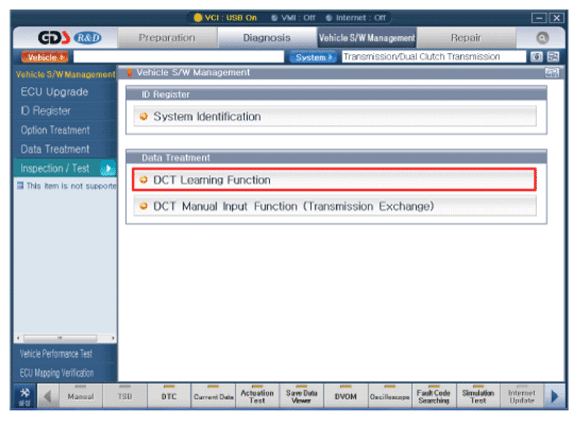

- Perform the clutch touch point learning procedure using the GDS.NOTE:
- Even if you removed and reinstalled the clutch actuator, be sure to perform the touch point learning.
- If you have replaced the dual clutch assembly or clutch actuator, be sure to perform the touch point learning.
