Diagnosis With GDS

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

The heating, ventilation and air conditioning can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).
The diagnostic system (GDS) provides the following information.
1. Self diagnosis: Checking the failure code (DTC) and display.
2. Current data: Checking the system input/output data state.
3. Actuation test: Checking the system operation condition.
4. Additional function: Other controlling such as he system option and zero point adjustment.
Select the "Car Model" and the system to be checked in order to check the vehicle with the tester.

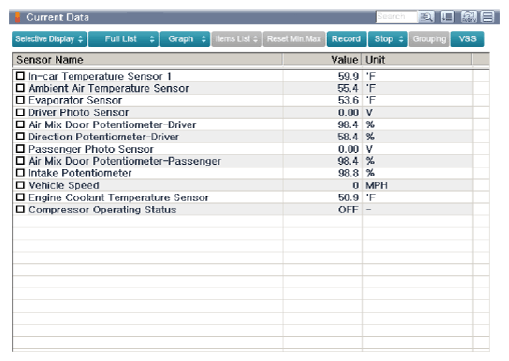

Select the "Current Data" menu to search the current state of the input/output data.
The input/output data for the sensors corresponding to the Evaporator Temperature Sensor can be checked.

Courtesy of HYUNDAI MOTOR AMERICA
