Diagnosis With GDS
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- The heating, ventilation and air conditioning can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).
The diagnostic system (GDS) provides the following information.
- Self diagnosis: Checking the failure code (DTC) and display.
- Current data: Checking the system input/output data state.
- Actuation test: Checking the system operation condition.
- Additional function: Other controlling such as he system option and zero point adjustment.
- Select the "Car model" and the system to be checked in order to check the vehicle with the tester.

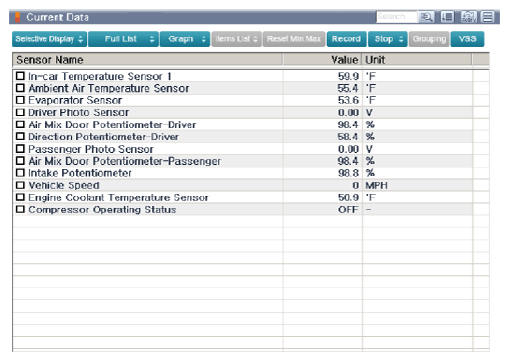

- Select the "Current data" menu to search the current state of the input/output data.
The input/output data for the sensors corresponding to the Ambient Temperature Sensor can be checked.
