Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

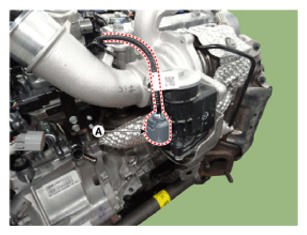

- Disconnect the EWGA connector (A).
- Remove the exhaust manifold heat protector.
(Refer to Engine Mechanical System - "EXHAUST MANIFOLD ")
- Remove the shaft link assembly (B) after removing the C-ring (A).
- Remove the turbo charger water pipe installation bolt (A).

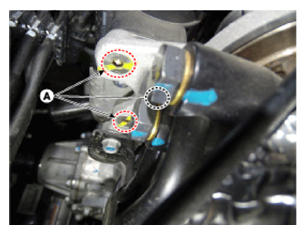

- Remove the EWGA after removing the bolts (A).CAUTION:
- When carrying the turbo charger, do not hold the rod of the turbo charge to prevent bending the rod.
