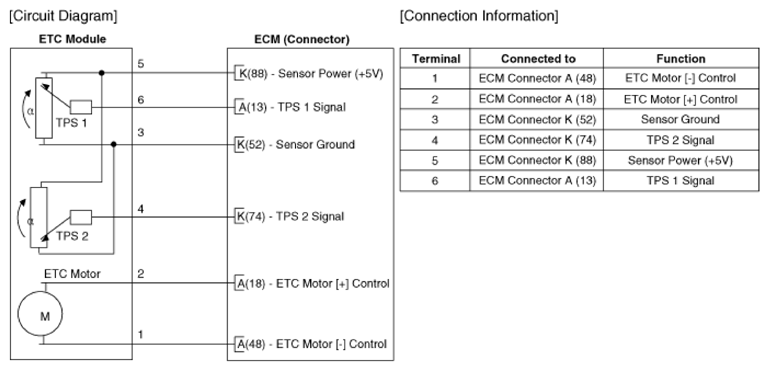

Circuit Diagram

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
G12596609Courtesy of HYUNDAI MOTOR AMERICA

Harness Connector

G12596610Courtesy of HYUNDAI MOTOR AMERICA
