Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

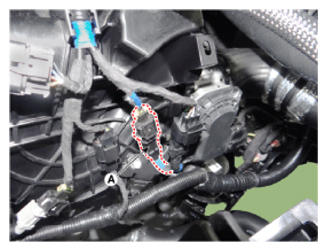

- Disconnect the crankshaft position sensor connector (A).
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

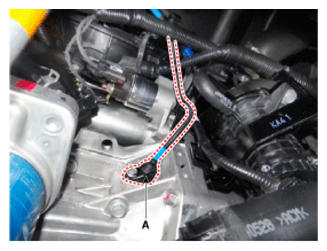

- Remove the crankshaft position sensor (A) after loosening the mounting bolts.
