Battery Tray
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery.
(Refer to "REMOVAL ")
- Remove the ECM.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

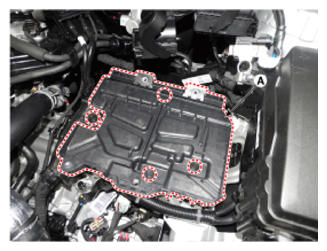

- Remove the battery tray (A) after loosening the bolts.
Battery Tray Mounting Bolt:
8.8 - 29.4 N.m (0.9 - 3.0 kgf.m, 6.5 - 21.8 lb-ft)
