Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative (-) cable.
- Turn the ignition switch OFF.

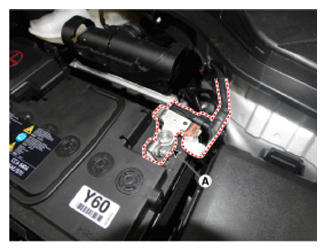

- Disconnect the battery (-) terminal (A).
Battery Negative (-) Terminal Tightening Nut:
4.0 - 6.0 N.m (0.4 - 0.6 kgf.m, 3.0 - 4.4 lb.ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|

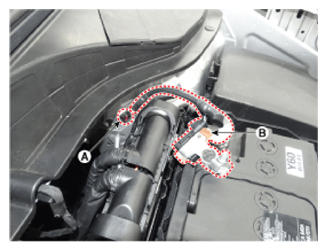

- Remove the battery sensor (B) after loosening the mounting bolt (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
