Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.

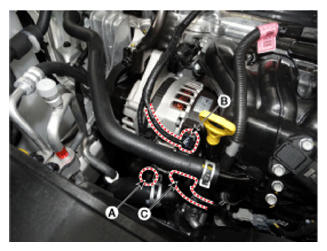

- Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable (C) from alternator "B" terminal.

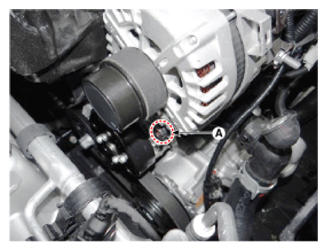

- Loose the alternator by loosening the mounting lower bolt (A) lightly, not completely, to remove the drive belt.

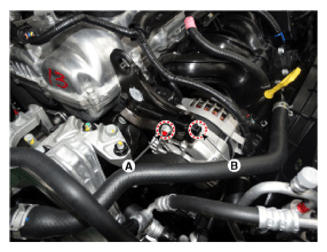

- Loosen the mounting bolts (A) and then, turn the adjusting bolt (B) clockwise to loosen tension.
- Remove the drive belt (A).

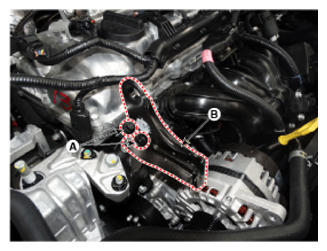

- Remove the alternator brace bracket assembly (B) after loosening the mounting bolt (A).

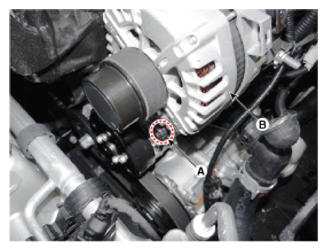

- Remove the alternator mounting low bolt (A), and then remove the alternator (B).
