Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the alternator.

    (Refer to Charging System - "ALTERNATOR ")

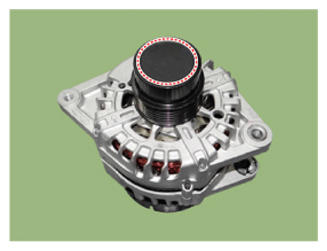

  2. Remove the OAD (Overrunning Alternator Decoupler) cap (A).
    G12596415Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, replace with new OAD cap.

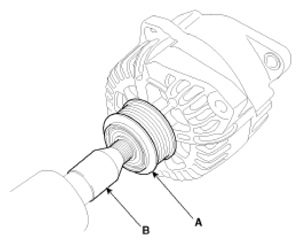

  3. Remove the OAD (Overrunning Alternator Decoupler) pulley (A) using the special tool.
    G12596416Courtesy of HYUNDAI MOTOR AMERICA

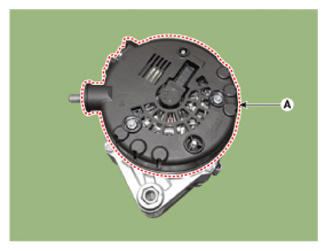

  4. Remove the rear cover (A) after removing nuts.
    G12596417Courtesy of HYUNDAI MOTOR AMERICA

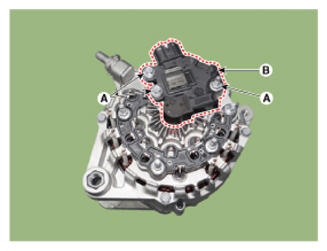

  5. Remove the mounting bolts (A) and the regulator assembly (B).
    G12596418Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the slip ring guide (A) after pulling it.
    G12596419Courtesy of HYUNDAI MOTOR AMERICA

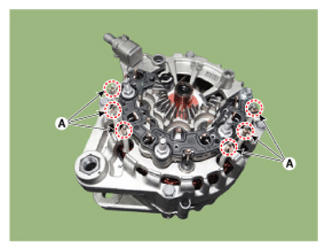

  7. Unsolder the 3 stator leads (A).
    G12596420Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the 4 through bolts (A).
    G12596421Courtesy of HYUNDAI MOTOR AMERICA

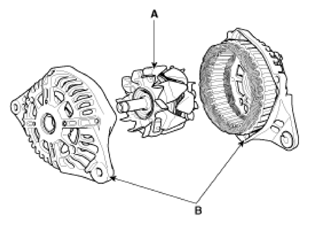

  9. Disconnect the rotor (A) and bracket (B).
    G12596422Courtesy of HYUNDAI MOTOR AMERICA
