Removal And Installation: Notes

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery "-" terminal.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Loosen the drain plug and drain the coolant and remove the radiator cap to speed draining.
(Refer to Cooling System - "COOLANT ")
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

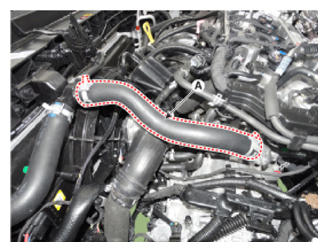

Disconnect the radiator upper hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

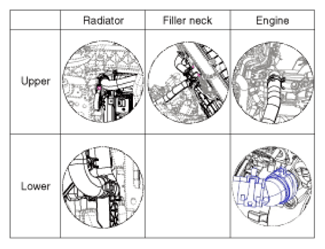

When installing radiator hoses, install as displayed in images.

Courtesy of HYUNDAI MOTOR AMERICA

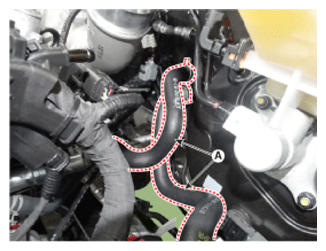

Disconnect the heater hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When installing heater hoses, install as displayed in images.

Courtesy of HYUNDAI MOTOR AMERICA

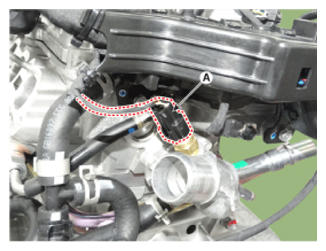

Remove the water temperature sensor connect (A).

Courtesy of HYUNDAI MOTOR AMERICA

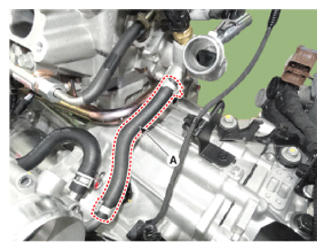

Remove the water hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

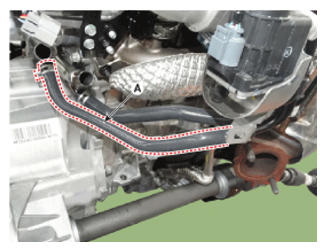

Disconnect the turbocharger coolant hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

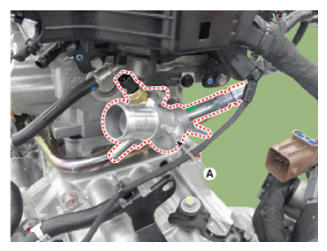

Remove the water temperature control assembly (A).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- Clean the surface of the water temperature control assembly before installing.
- install the O-ring after wetting with water.
Fill the radiator with water through the radiator cap and tighten the cap.
(Refer to Cooling System - "COOLANT ")
Start the engine and check for leaks.
Recheck engine coolant level.
