Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen the drain plug (A), and drain the engine coolant. Remove the radiator cap to drain with speed.
(Refer to cooling system - "COOLANT ")
- Remove the drive belt.
(Refer to Timing System - "DRIVE BELT ")

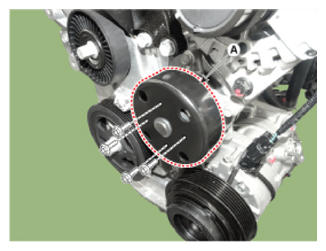

- Remove the water pump pulley (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

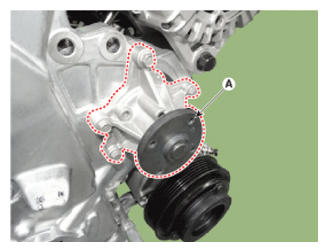

- Remove the water pump (A) and gasket.
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
